Driveway Drainage in Telford: What Works?

Telford sits on some of the most notoriously clay-heavy ground in the West Midlands and Shropshire — ground that holds water rather than absorbing it. Add the region’s reliable rainfall and it becomes clear why driveway drainage in Telford is not an optional extra. Without it, water pools on surfaces, creeps towards foundations, undermines sub-bases and turns patios into skating rinks.

TPC Limited covers Telford, Shropshire, Wolverhampton, Shrewsbury, Walsall, Dudley and the surrounding areas, engineering drainage into every hard landscaping and driveway project from the very first survey.

Why Drainage Matters in Telford and Shropshire

Clay soils have low permeability. When rain falls faster than the ground can absorb it — which in Shropshire happens regularly — water finds the path of least resistance. On a well-designed surface, that path is a properly graded fall leading to a drainage channel, soakaway or adopted system. On a poorly designed one, it is your doorstep, your garage floor or the base of a retaining wall.

Beyond inconvenience, chronic poor drainage can:

Erode and destabilise sub-base materials beneath block paving or tarmac
Cause hydrostatic pressure to build behind retaining walls
Contribute to damp at ground-floor level if water pools against the building fabric
Accelerate surface deterioration through freeze-thaw cycles

None of these outcomes is inevitable with the right drainage specification at the outset.

When Does Your Driveway or Garden Actually Need Drainage?

A drainage upgrade is worth investigating if any of the following apply:

Water visibly pools on existing surfaces for more than a short time after moderate rain
Your plot sits on clay-dominated ground or in a low-lying position
You are adding significant new hard surfacing — a driveway, patio extension or forecourt — that reduces the permeable area of your plot
The ground or surface slopes towards the house rather than away from it
Local planning conditions or Building Regulations require a managed drainage solution

If you are uncertain, a site survey is the most reliable way to establish what your specific plot needs. Conditions vary considerably even within a single street, so generic guidance can only take you so far.

Understanding SuDS: What the Rules Mean for Your Property

Sustainable Drainage Systems (SuDS) are designed to slow and manage surface water runoff, reducing the load on public sewers and lowering flood risk at a local level. National planning policy in England encourages SuDS for new developments, and local authorities — including Telford & Wrekin Council — may apply conditions requiring managed drainage for certain works.

A few important points worth understanding before you commit to a surface:

SuDS compliance is not automatic. Using a permeable surface material does not, by itself, satisfy a SuDS requirement. The entire build-up — sub-base, geotextile, bedding layer, edge restraints and the ultimate drainage route — all affect whether water is genuinely managed rather than simply displaced.
Permitted development rules vary. Householders replacing a front driveway with an impermeable surface of more than five square metres may require planning permission unless adequate drainage is provided. Rules differ for listed buildings, conservation areas and other restricted settings. Always verify current requirements with your local planning authority before work begins.
This article is not planning or structural advice. Property rights, local restrictions and site conditions differ. Confirm the position with official sources and, where necessary, a qualified specialist.

TPC designs installations with reference to CIRIA SuDS Manual guidance and relevant British Standards, and will advise on the drainage approach most appropriate for your site during the survey stage.

Which Drainage System Works Best for Each Surface?

Driveways: Block Paving, Resin Bound and Tarmac

Different driveway surfaces call for different drainage strategies. TPC’s approach to driveway design and construction begins with assessing the existing drainage regime before specifying any system.

Surface	Typical Drainage Approach

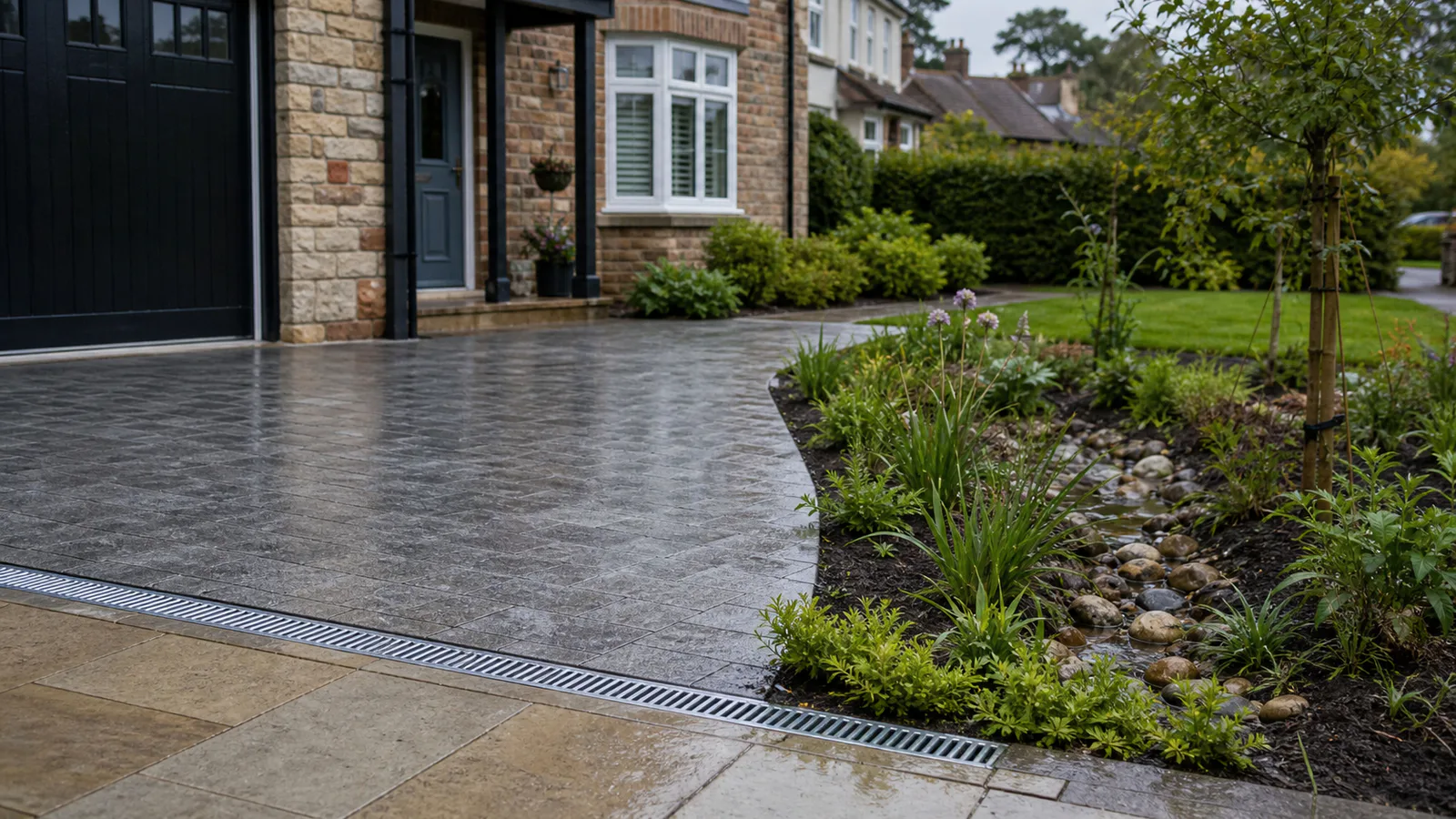

Block paving	ACO or driveway channel drain at the threshold; permeable jointing or sub-base where appropriate; French drain at edges if required
Resin bound	Inherently permeable to water through its structure, but perimeter or slot drains may still be specified for heavy rainfall events or where the sub-base cannot accept the full flow
Tarmac / SMA	Channels, gullies or slot drains required to collect and direct runoff

Patios, Garden Paving and Sloped Ground

For porcelain, natural stone and other garden paving, correct surface falls are essential. Building Regulations Part H and standard good practice reference minimum gradients — typically in the region of 1:80 to 1:60 — to shed water without ponding. Where a patio abuts the house, slot drains, ACO channels or recessed drainage covers near the threshold help prevent water tracking towards the building.

All TPC patio and landscaping installations incorporate a geotextile membrane, compacted MOT Type 1 sub-base and precise level-setting to direct water to the appropriate drainage point.

For sloped gardens and retaining walls, French drains and land drains positioned behind the wall are standard practice to relieve lateral hydrostatic pressure. Neglecting this detail is one of the most common causes of retaining wall failure over time.

TPC also installs PVC drainage pipework, ducting and additional drainage features such as soakaways where site conditions and ground permeability make them suitable.

How TPC Designs and Installs Drainage

TPC’s process is structured around getting drainage right before a single flag or block is laid:

Site survey — Soil type, existing drainage infrastructure, surface water flow paths and gradients are all assessed on site.
Falls and levels — Precise gradients are established and set out to ensure water sheds efficiently to the intended drainage points.
System selection — The appropriate combination of ACO channel drain, French drain, soakaway, permeable surfacing or attenuation is specified for the site rather than applied as a default.
Integration — Drainage components are built into the sub-base and surfacing works as an integral part of construction, not added as an afterthought.
SuDS alignment — Where planning conditions or local requirements apply, the design is shaped to meet them.
Handover — TPC provides aftercare guidance so you understand how the system works and what maintenance, if any, it requires.

Itemised quotations are produced from TPC’s pricing schedule, so you can see exactly what is included and why — no line items buried or presented as approximations.

For larger landscaping projects, TPC offers an in-house 2D design layout service during the pre-construction phase. This gives clients a clear visual reference for how drainage integrates with the wider scheme before groundworks begin.

Getting a Site Assessment with TPC

If you have noticed pooling water on your driveway or garden, or you are planning new hard landscaping in Telford, Shropshire or the surrounding areas, the right starting point is a professional site survey. Drainage requirements are site-specific; what works on a sandy loam plot in one part of Shropshire may be entirely inadequate on a clay-heavy site two miles away.

TPC Limited provides clear, itemised quotations following every survey, with drainage designed as an integral part of the finished scheme rather than a retrofit.

Request a site survey and quotation via the TPC driveways page or explore the full range of landscaping services to discuss your project.

All drainage designs are site-specific and subject to an on-site survey. Planning and Building Regulations requirements vary by property, location and the nature of works proposed. Verify current requirements with your local planning authority and relevant statutory bodies before commencing any project.
